IEC 60076, ANSI/IEEE Std C57.12, NEMA
ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
Mineral Oil / Vegetable Oil (FR3), Free PCB
Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
High altitude correction per IEC 60076 & IEEE C57.12, ~ 5000m

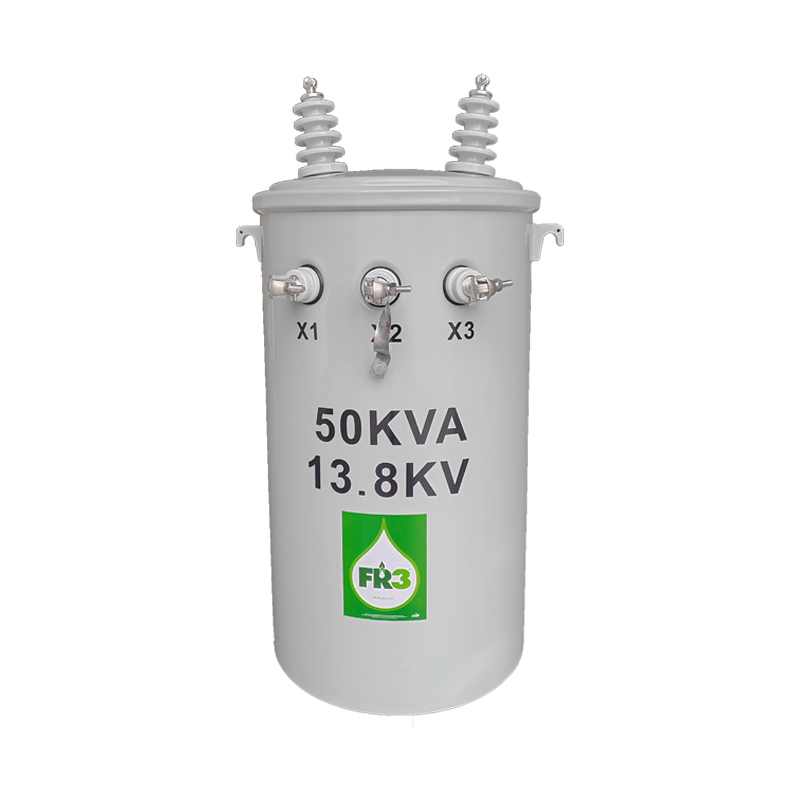

Single Phase Overhead Transformer
Rated Capacity (kVA) | Voltage and tapping range(kV) | Loss (W) | Overall Dimension (mm) | Weight (kg) | |||||
HV (V) | LV (V) | No-load loss | On-load loss | W | D | H | Oil weight | Total weight | |
3 | 34500/19920 33000/17321 30000/17320 20000/11547 13800/7967 13200/7620 11000/6350
±2x2.5% ±1 x 5% | 120-240 110-220 240-480 250-500
| 12 | 45 | 430 | 530 | 760 | 20 | 105 |
5 | 25 | 75 | 430 | 530 | 780 | 30 | 110 | ||
10 | 50 | 120 | 430 | 530 | 830 | 30 | 130 | ||
15 | 65 | 195 | 480 | 580 | 850 | 40 | 185 | ||
25 | 105 | 290 | 500 | 580 | 880 | 45 | 210 | ||
37.5 | 140 | 360 | 560 | 640 | 930 | 60 | 300 | ||
50 | 180 | 500 | 560 | 640 | 980 | 70 | 335 | ||
75 | 250 | 650 | 680 | 720 | 980 | 103 | 460 | ||
100 | 275 | 850 | 780 | 800 | 1020 | 123 | 530 | ||
167 | 455 | 1410 | 830 | 890 | 1050 | 155 | 670 | ||
